How to Update Firmware on Stratasys F-Series Printers Using GrabCAD Print

How to Update Firmware on Stratasys F-Series Printers Using GrabCAD Print

Keeping your Stratasys F-Series printer's firmware up to date ensures optimal performance and access to the latest features. Follow the steps below to update your printer's firmware using GrabCAD Print.

Prerequisites

  • Ensure your printer is connected to the same network as your computer.
  • Install the latest version of GrabCAD Print from https://print.grabcad.com.
  • Close any active print jobs and allow the printer to idle before updating firmware.

Steps to Update Firmware

  1. Launch GrabCAD Print on your computer and sign in to your GrabCAD account.
  2. Select Your Printer: In the bottom right corner, click on your connected Stratasys F-Series printer.
  3. Access Settings: Click on the “Settings” option for your selected printer.
  4. Check for Updates: If a firmware update is available, an orange banner will appear indicating that an update is ready.
  1. Initiate Update: Click on the orange banner to begin the update process.

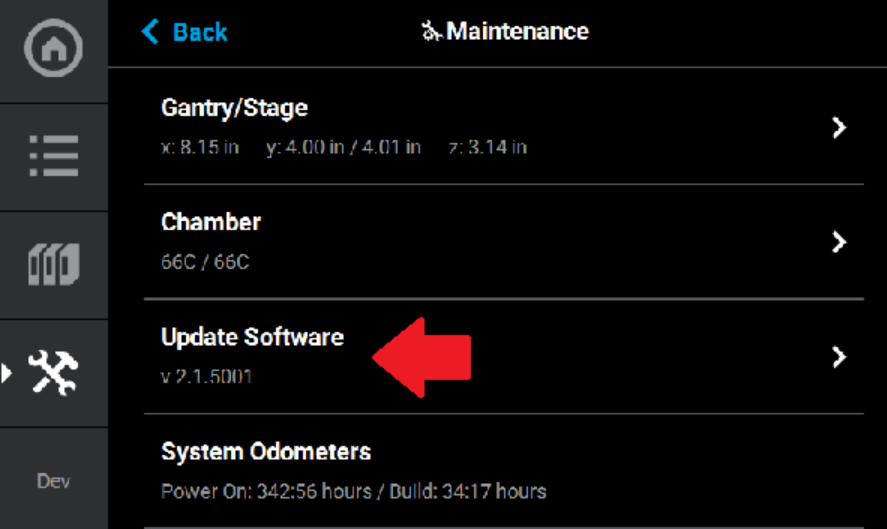

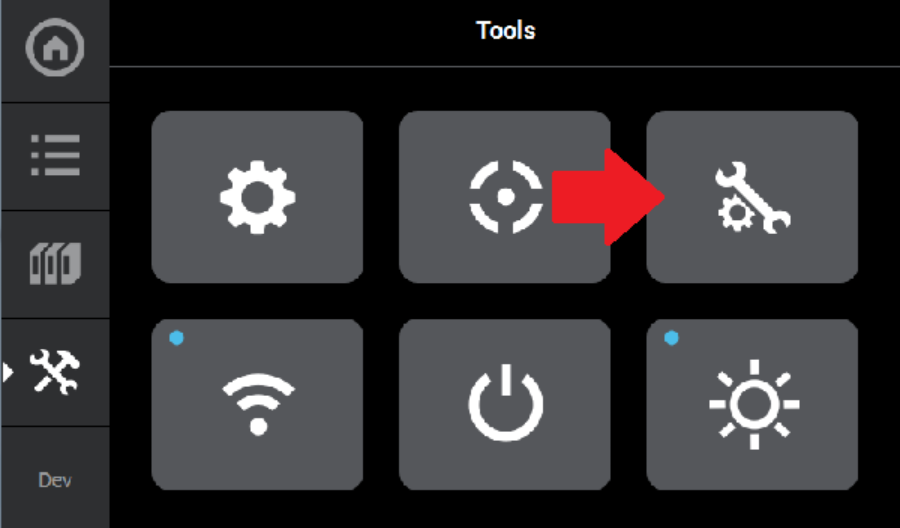

  2. Prepare Printer: On the printer's touchscreen, navigate to Maintenance > Update Software. The printer will display a message indicating it's waiting for the upgrade file.

  1. Complete Update: GrabCAD Print will send the firmware update to the printer. The printer will display messages such as "Verifying" and then "Updating." This process may take up to 15 minutes.
  2. Restart Automatically: Once the firmware update is complete, the printer will automatically restart.

Troubleshooting

  • If the firmware update fails or stalls, ensure stable network connectivity during the update.
  • Restart both the printer and your computer, then try again.
  • If issues persist, contact Stratasys support or your service provider for assistance.
