Epilog - Vector Lines are Not Being Spilt by The Dashboard

Epilog - Vector Lines are Not Being Spilt by The Dashboard

1. Ensure vector line weights are set properly:

  1. Hairline - Corel Draw
  2. .001 - Adobe Illustrator

2. Epilog Dashboard Settings May Not Be Configured Properly:

  1. Open the Epilog Dashboard
  2. Click the settings gear In the upper right-hand corner.

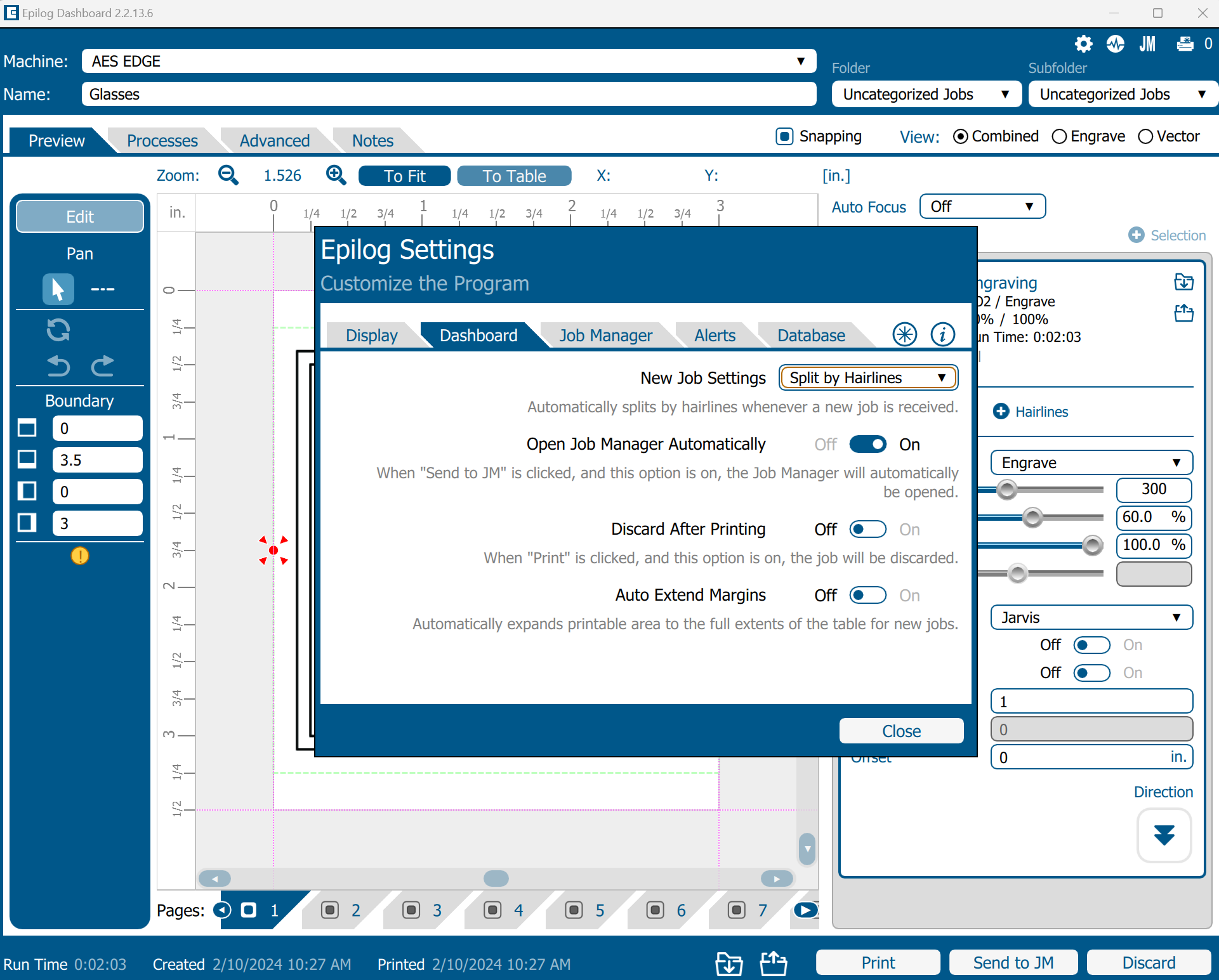

  3.  Navigate to the Dashboard Tab.
  4. New Job Settings Should Be Set to Split by Hairlines
  5. Close the Dashboard and Resend the Job.


3. If this Issue Persists in Adobe Illustrator with images on the artboard, see here: Epilog - Adobe Illustrator Images and Vector Cut Lines Ignored
